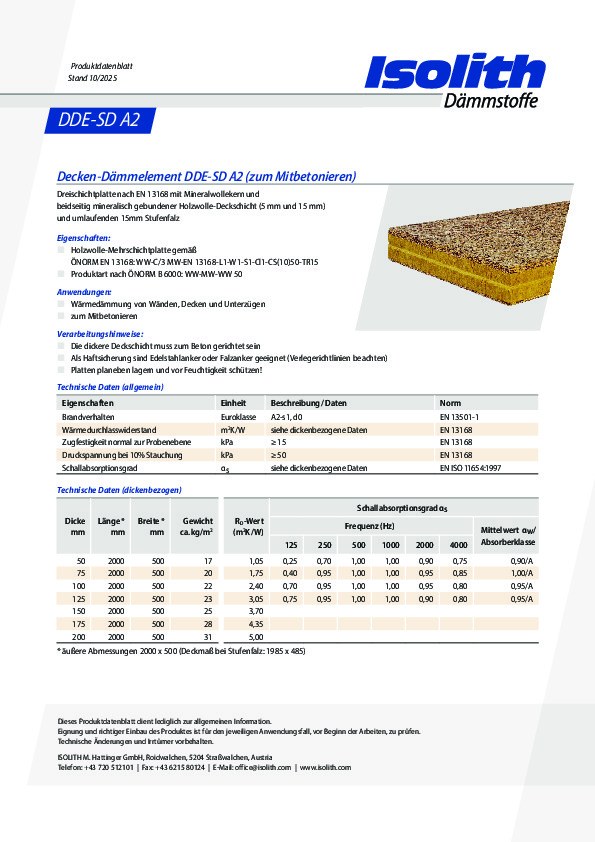

DDE-SD A2 (for concreting)

Cement-bound tripple-layer board according to EN 13168 with mineral wool core, one-sided thicker cover layer and all-round 15 mm step fold.

Characteristics:

  • Product type according to standard ÖNORM B 6000 WW-MW-WWH 50
  • Euroclass A2
  • Excellent thermal insulation
  • Sound absorbing

Applications:

  • For insertion as lost formwork in ceilings and walls especially in underground car parks.
    The thicker covering layer must face the concrete.
  • Stainless steel anchors or fold anchors are suitable as adhesion safeguard (Observe the installation guidelines).
  • Mounting accessories pages 20–23

Packaging:

In full packaging units on factory pallets (Deposite € 12,00/Stk.),
dry storage required.
Weatherproof packaging for a surcharge € 3,45 /Pal.

Delivery program

Thickness
mm
Length*
mm
Width*
mm
Weight
approx. kg/m²
RD-Value
(m²K/W)
m²/
Pallet
50 2000 500 17 1,05 44
75 2000 500 20 1,75 30
100 2000 500 22 2,40 22
125 2000 500 23 3,05 18
150 2000 500 25 3,70 16
175 2000 500 28 4,35 12
200 2000 500 31 5,00 10

* Outer dimension (Coverage messure with step fold: 1985 x 485).

Technical characteristics:

Tensile strength perpendicular to faces: 15 kPa
Compressive strength at 10% deformation: 50 kPa
