KDE-38

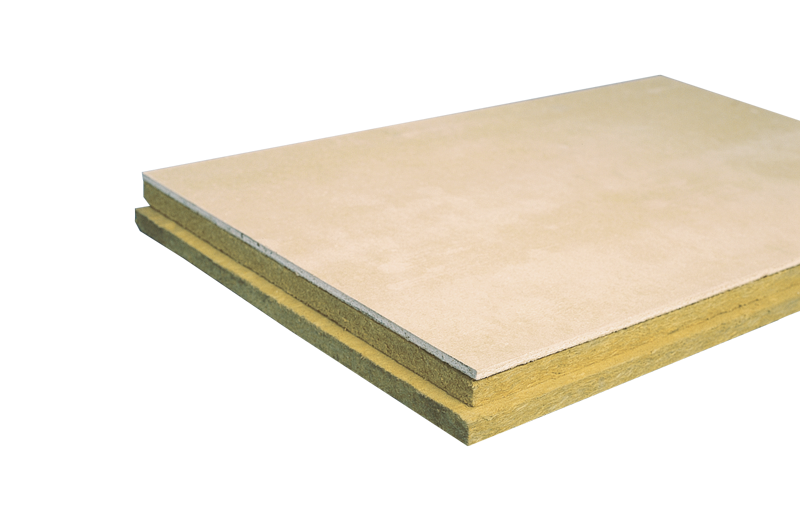

Composite board made of non-combustible mineral wool according to EN 13162 with a 10 mm non-combustible special board and 15 mm step fold all round.

Characteristics:

  • Excellent thermal insulation
  • Stable, flat surface
  • Simple installation

Applications:

  • Subsequent thermal insulation of basement ceilings.
  • Mounting accessories pages 20–23.

Packaging:

n full packaging units on factory pallets (Deposite € 12,00/Stk.),
dry storage required.
Weatherproof packaging for a surcharge € 3,45/Pal.

Delivery program

Thickness
mm
Length*
mm
Width*
mm
Weight
approx. kg/m²
RD-Value
(m²K/W)
m²/
Pallet
60 1015 640 18 1,45 39,00
100 1015 640 21 2,55 23,40
130 1015 640 24 3,40 17,55

* Coverage messure: 1000 x 625 mm (outer dimension = Invoice messure: 1015 x 640 mm)

Dimensional tolerances:

Insulation: according to EN 13162
Production: +/– 2 mm

Technical characteristics:

Permanent load: 200 kg/m2
Vapour resistivity MW: 1 µ
Vapour resistivity Cover board: 10 µ
Euroclass according to EN 13501-1
MW: A1
Cover board: A2
